Dora

Dora

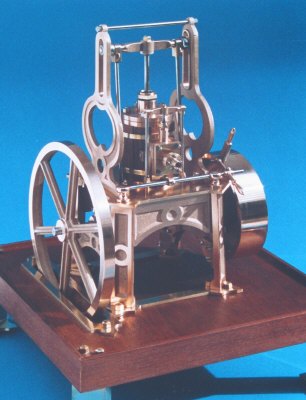

An attractive steam engine in the style of Maudsley basen on an English prototype on the scale of 2:3

  • height 300mm
  • flywheel ø180mm
  • bore 30mm
  • stroke 48mm
Larger image

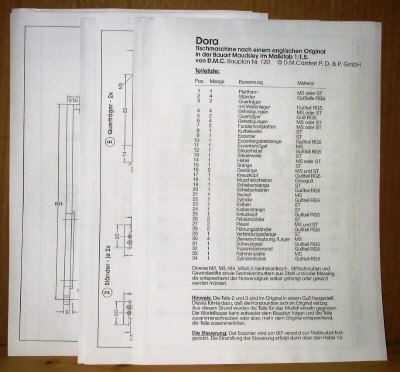

Metric drawings Dora by D.M.C.

810000
  • Description

All items in scale 1:1, 16 sheets in A4 size. © "D. M. Carsten"

Set of castings for one Dora

810001


Single castings

  • Description

Single castings

Larger image

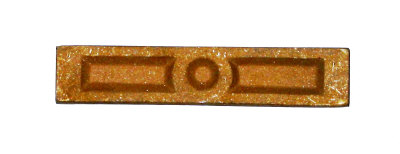

Vertical plate

810002
  • Description
  • gunmetal
  • Dora set: 4x
Larger image

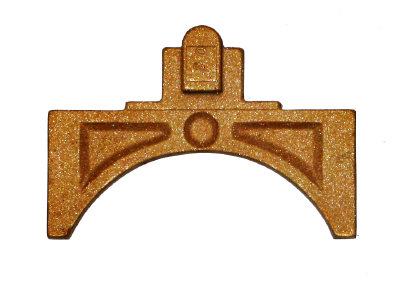

Horizontal plate with bearing

810003
  • Description
  • gunmetal
  • Dora set: 2x
Larger image

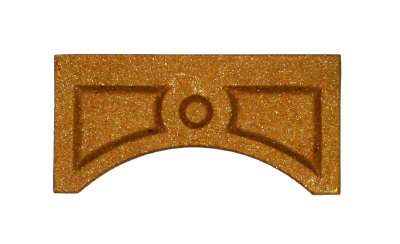

Horizontal plate

810005
  • Description
  • gunmetal
  • Dora set: 2x
Larger image

Fork for eccentric

810010
  • Description
  • gunmetal
  • Dora set: 1x
Larger image

Steering bar

810012
  • Description
  • gunmetal
  • Dora set: 1x
Larger image

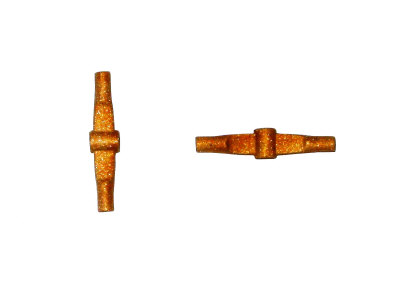

Small crosshead

810017
  • Description
  • gunmetal
  • Dora set: 1x
Larger image

Steam chest

810020
  • Description
  • gunmetal
  • Dora set: 1x
Larger image

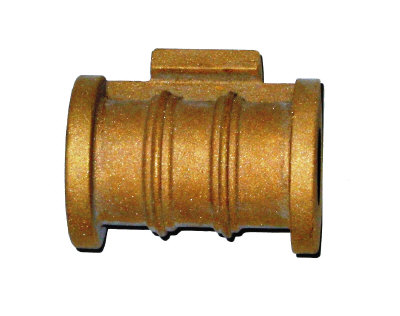

Cylinder

810022
  • Description
  • gunmetal
  • Dora set: 1x
Larger image

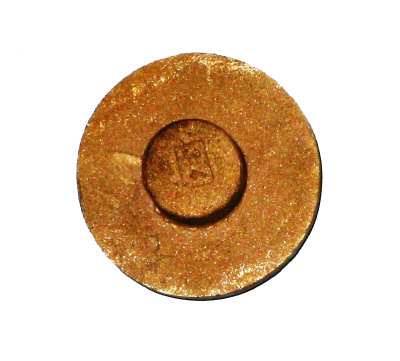

Cylinder cover

810034
  • Description
  • gunmetal
  • Dora set: 1x
Larger image

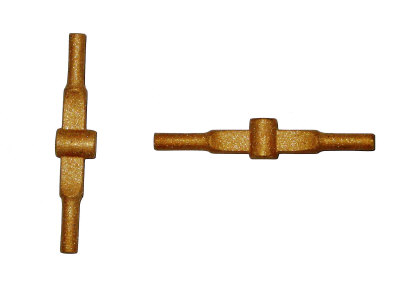

Large crosshead

810025
  • Description
  • gunmetal
  • Dora set: 1x
Larger image

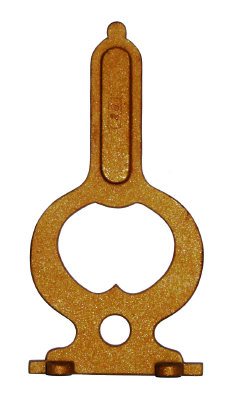

Motion bracket

810028
  • Description
  • gunmetal
  • Dora set: 2x

Flywheel, outer diameter: 184mm

810031
  • Description
  • gunmetal
  • Dora set: 1x
Larger image

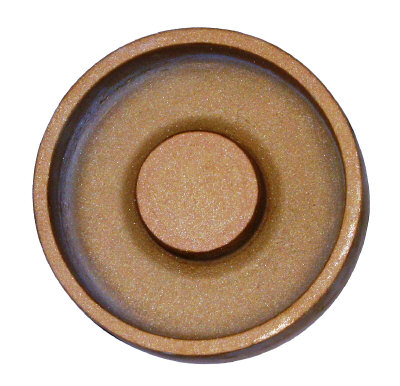

Transmission wheel

810032
  • Description
  • gunmetal
  • Dora set: 1x
