Set of castings, riveting tools

Castings for riveting tools and detailed drawing 1:1 in metric or imperial system. The mechanical part is identical for all sizes so that only one unit is to be produced

Drawing and casting for riveting tool, scope 75mm

807520

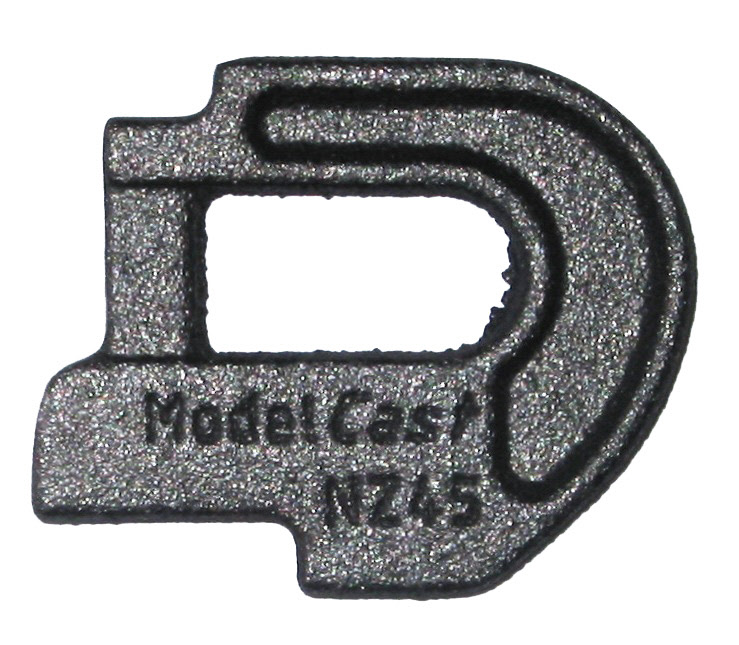

Drawing and casting for riveting tool, scope 45mm

804520

Drawing and casting for riveting tool, scope 12mm

801220

Drawing and three castings for riveting tool

800320

Pairs of snaps for rivets
