Gloria

Gloria

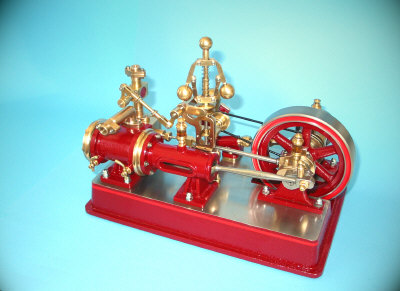

Horizontal single cylinder steam engine based on a German model of the beginning of the 20th century

  • length286mm
  • fly whell diameter 110mm
  • bore 25mm
  • stroke 26mm


Steam engine Gloria

Gloria fertig
  • Description
steam engine, ready, like on top illustrated, unique piece
Zoom

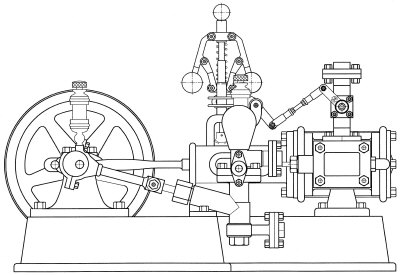

Complete set of metric drawings Gloria

810340
  • Description
  • by W. Scheeberger
  • showing all items on scale
  • inlcuding water pump, governor and throttle valve
  • with part list

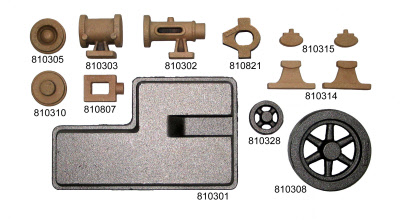

Set of castings for Gloria

810399
  • Description

Set of castings for Gloria basis engine

Zoom

Cylinder cover in gunmetal

810305
  • Description
Gloria set: 1x
Zoom

Cylinder cover in gunmetal

810310
  • Description
Gloria set: 1x
Zoom

Cylinder casting in gunmetal

810303
  • Description
Gloria set: 1x
Zoom

Steam chest in gunmetal

810807
  • Description
Gloria set: 1x
Zoom

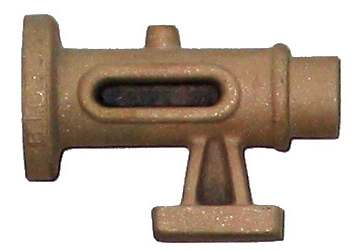

Crosshead slide in gunmetal

810302
  • Description
Gloria set: 1x

Small flywheel in cast iron

810328
  • Description
Gloria set: 1x
Zoom

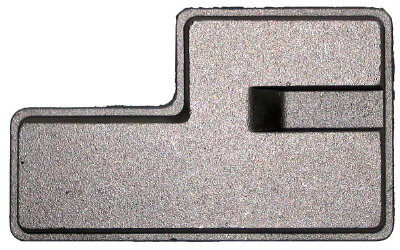

Base in cast iron

810301
  • Description
Gloria set: 1x
Zoom

Bearing cap in gunmetal

810315
  • Description
Gloria set: 2x
Zoom

Main bearing in gunmetal

810314
  • Description
Gloria set: 2x
Zoom

Flywheel in cast iron

810308
  • Description
Gloria set: 1x
Zoom

T-connection in gunmetal

810352
Zoom

Excentric strap in gunmetal

810821
  • Description

Gloria set: 1x

(1x required for steam chest and 1x required for water pump)

Zoom

Governor lever in gunmetal

810863
Zoom

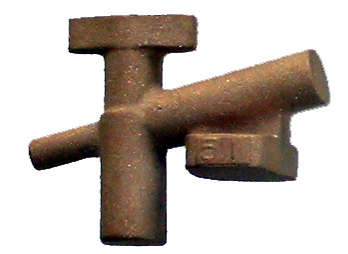

Housing water pump in gunmetal

810351
Zoom

Main housing governor in gunmetal

810861
Zoom

Connecting piece in gunmetal

810356
Zoom

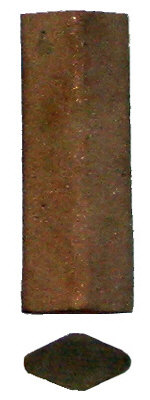

Flange material in gunmetal, 70x26x14mm

810394
Zoom

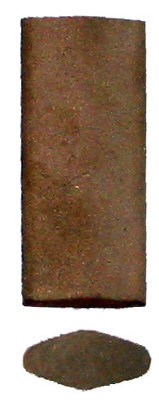

Flange material in gunmetal, 70x32x15mm

810395
Zoom

Elbow material in gunmetal, 55x40mm, ø10mm

810392
Zoom

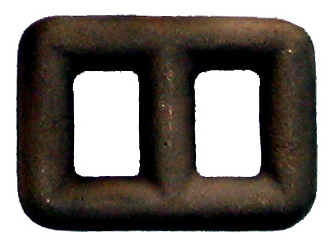

Elbow material in gunmetal, 70x50, ø13mm

810391
